Why providing ongoing production support mission critical…

Whilst offering the best tube bending machines available in the world, AMOB also prides themselves on after-sales support. This support takes form in many ways, such as network connectivity issue resolution and remote support, but it also means in-person training, product upgrades, and much more. Wherever in the world the customer may be.

This training is completed by many members of the AMOB Group team. This includes both engineers from the manufacturing facility in Portugal, but also AMOB UK’s own engineering department. These teams of engineers spend many months of the year travelling the globe, servicing, training, upgrading, and providing ongoing support. After all, AMOB UK is not restrained to the United Kingdom!

But why is ongoing, after sales production support so important?

Production support is so important because it ensures that products remain operational and meets the needs of end users. When a company invests in a product, in this case tube bending machinery, it is expected to function properly and provide the intended benefits to its users. However, issues can arise that prevent the product or service from working as expected. It is at this point that an expedient response network is essential.

Production support is responsible for addressing issues, and ensuring that the product continues to meet the needs of its users. This can include fixing breakdowns, addressing performance issues, providing technical assistance to users who are experiencing problems, or training new users.

Without an effective production support network, a product a customer has invested in can become unreliable, frustrating to use, and can even fail completely. This can result in lost revenue, decreased customer satisfaction, and damage to the reputation of both companies involved.

In addition, production support can also play a critical role in improving a product. By monitoring user feedback and identifying areas where the product can be improved, production support can help drive product development, benefiting both AMOB and its clients.

The importance of a robust production support team cannot be overstated, and is a core principle that AMOB understands acutely.

AMOB UK and Australia, January 2023.

In January 2023, a team of expert engineers from both AMOB UK and AMOB Portugal spent one month in Australia. During this time, the combined team visited over half a dozen sites and provided production support, training, servicing, and maintenance.

While most issues can be resolved remotely with AMOB machine’s network connectivity, some issues require a more hands on, or face to face approach. For example, while software updates can routinely be performed via an internet connection to the factory, machine maintenance cannot. The same can be said for operator training, where multiple hands-on demonstrations can be performed to all required operators.

During this month in Australia, the team visited many customers, such as Harrower Tube Bending, in Bendigo. The engineers also spent time training many new operators at BAE Systems Australia, in Melbourne during an uptick in production on their site.

When asked, Tom Wood, Managing Director of AMOB UK said, ‘It has been a pleasure to meet new clients, and catch up with existing customers alike, across the width of the entire country, plus Adelaide is currently 35°C during British winter!

AMOB UK: Production Support/Australia

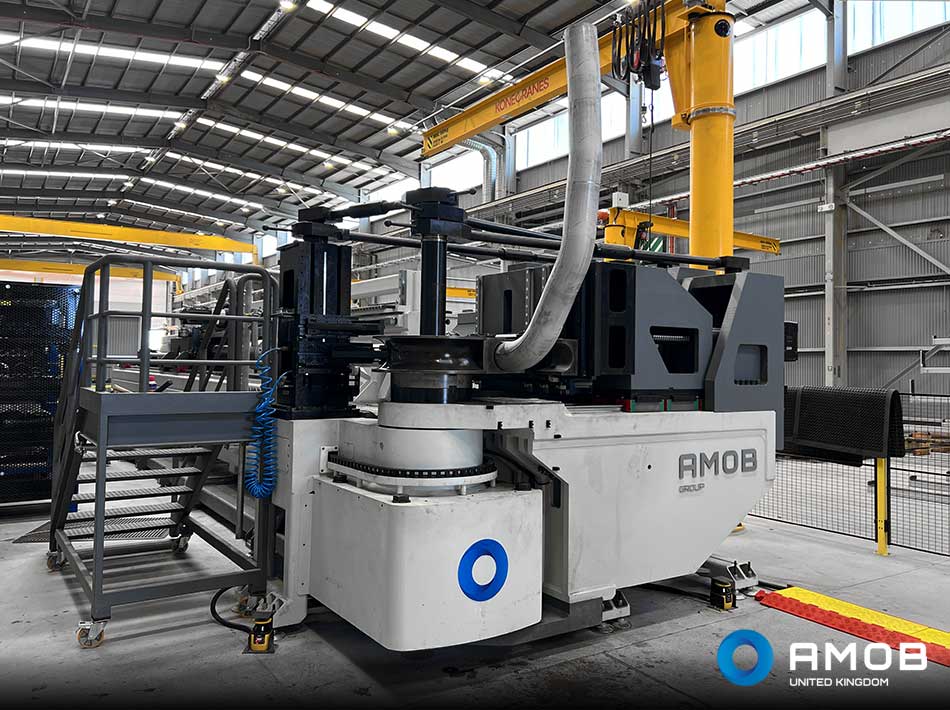

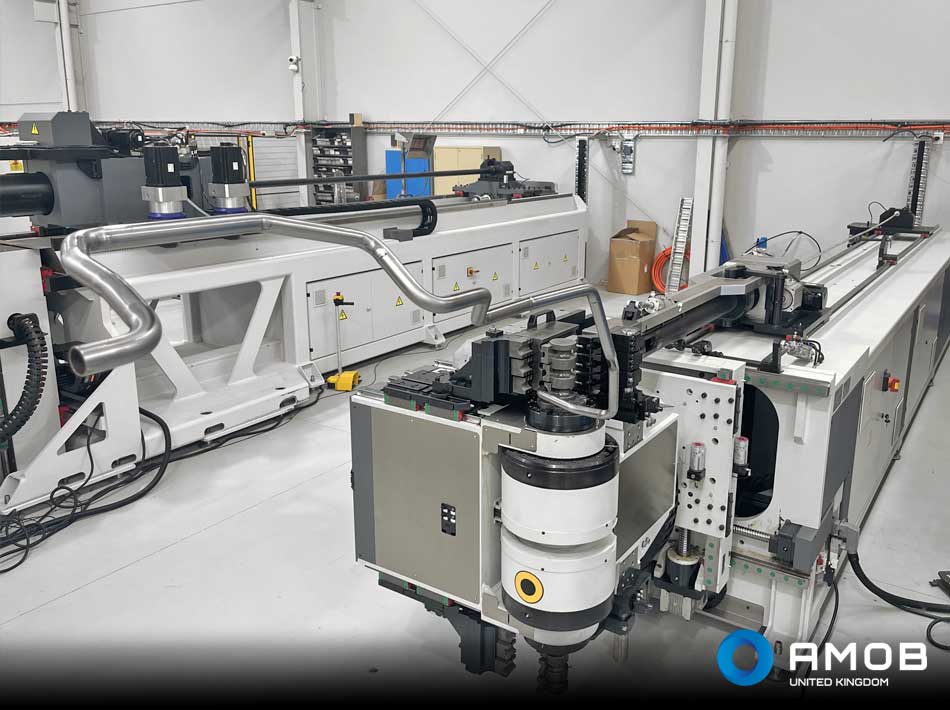

What mandrel bending machines were serviced in Australia by AMOB UK in January 2023?

eMOB-150

Production support for bending Ø4” x 1D centreline radius (CLR), a very tight and difficult radius to achieve.

  • Fully electric mandrel bender
  • Maximum capacity: Ø150mm (outside diameter) x 3mm WT (wall thickness)
  • X axis accuracy: ±0.05mm
  • Y axis accuracy: ±0.05°
  • Z axis accuracy: ±0.05°
  • Maximum bending radius: 400mm
  • All electric CNC pressure die assist
  • Variable radius programmable
  • Springback compensation
  • Software punching mechanism
  • Welding seam detection
  • Automatic springback verification/correction
  • Automatic Mandrel Lubrication as Standard
  • CE compliant safety fence
  • CE compliant laser scanner
  • Boosted Carriage as Standard

eMOB-52 2-bend

Production support bending Ø1” multi-bend parts, including a 2.5 metre, 15 bend single part.

  • Fully electric mandrel bender with rotating head
  • Maximum capacity: Ø52mm (outside diameter) x 2mm WT (wall thickness)
  • X axis accuracy: ±0.05mm
  • Y axis accuracy: ±0.05°
  • Z axis accuracy: ±0.05°
  • Maximum bending radius: 180mm
  • Standard useful length: 3000mm
  • Carriage booster programmable (Y-axis booster)
  • Wiper die support stack (both sides – left and right)
  • Wiper die lubrication
  • Automatic springback verification/correction
  • Automatic mandrel lubrication
  • Increments of useful length
  • CE compliant safety fence
  • CE compliant laser scanner
  • Automatic localised lubrication

eMOB-100

New operator training, plus production support for prototyping spools. Training included many new operators due to a large increase in production capabilities.

  • Fully electric mandrel bender
  • Maximum Capacity: Ø100mm (outside diameter) x 2mm WT (wall thickness)
  • X axis accuracy: ±0.05mm
  • Y axis accuracy: ±0.05°
  • Z axis accuracy: ±0.05°
  • Maximum bending radius: 400mm
  • 6,100mm useful length
  • All-electric CNC pressure die assist
  • Variable radius programmable
  • Springback compensation
  • CE compliant safety fence
  • CE compliant laser scanner
  • Wiper die support stack
  • All electric vertical CNC pressure die assist

eMOB-225

New operator training, plus production support for prototyping spools. Once again, training included many new operators due to a large increase in production capabilities offered by the machine.

  • Fully electric multi-stack bender
  • Maximum capacity: Ø219mm (outside diameter) x 12mm WT (wall thickness)
  • Left or right bending
  • 14 controlled axes
  • X axis accuracy: ±0.05mm
  • Y axis accuracy: ±0.05°
  • Z axis accuracy: ±0.05°
  • Maximum bending radius: 600mm
  • 6000mm useful length
  • 500mm maximum tool stack height
  • 10° per second bending speed
  • All-electric CNC pressure die assist
  • Variable radius programmable
  • Spring back compensation
  • Software punching mechanism
  • Welding seam-detection
